Acopower 3x 100W 12V Polycrystalline RV Solar Kit

Easy Installation

With pre-drilled holes; each solar panel comes with 12AWG cable with MC4 male/female quick connectors.

Hight Efficiency

3PCS Polycrystalline solar cell efficiency: 14.35%; 30A MPPT charge controller peak efficiency: 99.5%.

MPPT Technology

Solar Charge Controller has user adjustable settings! LCD Screen shows, voltage, solar panel status, battery state of charge, and DC load draw. See Image in photo gallery for all LCD Screen readouts. Compatible with lead acid, AGM, gel, and lithium batteries.

Green Solar System

Designed for RVs, cabins, homes, boats, back-up and remote power use. The two solar panels can be wired in parallel for 12V battery charging or in series for 24V battery charging.

Common Negative Grounding Design

Multiple packages: Order will be delivered in multiple packages

Specifications

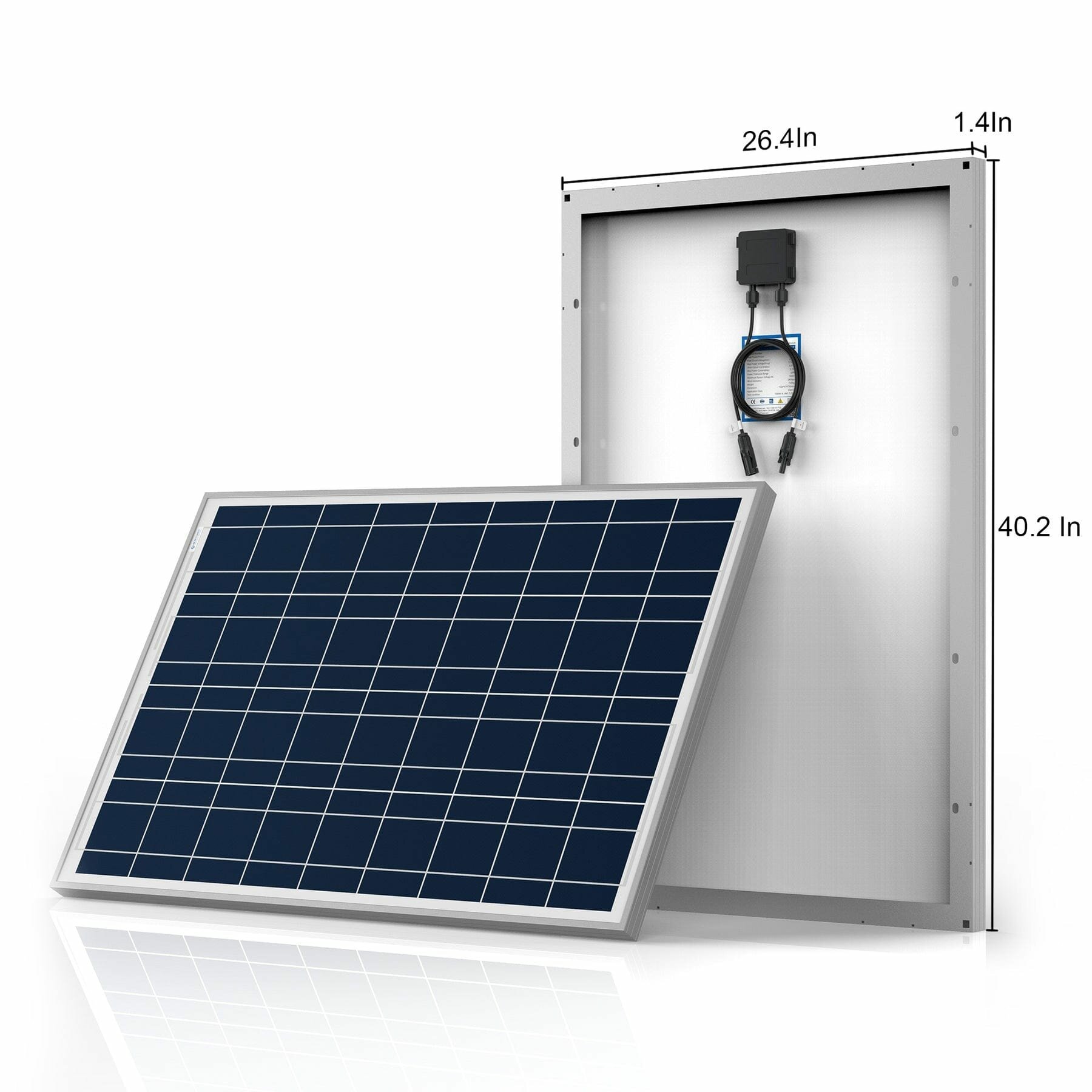

100W Solar Panel

  • SKU: HY-SPKP-300W30A
  • Maximum Power at STC (Pmax): 100W
  • Open-Circuit Voltage (Voc): 22V
  • Maximum Operating Voltage (Vmp): 17.48V
  • Short-Circuit Current (Isc): 6.21A
  • Maximum Operating Current (Imp): 5.72A
  • Operating Temperature: -40ºC to 85ºC
  • Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
  • Weight: 9.5kg / 20.6 lbs

30A MPPT Solar Charge Controller

  • Nominal system voltage: 12/24VDC Auto
  • Rated charge current: 30A
  • Battery input voltage range: 8V~32V
  • Max.PV open circuit voltage: 100VDC
  • Max.PV input power: 12V/390W, 24V/780W
  • MPP voltage range: V(BAT+2V)~72V
  • Working environment temperature: -25℃~+50℃
  • Storage temperature range: -35℃~+80℃
  • Grounding: Common negative
  • Communication: RS485
  • Power Terminals: 6AWG(16mm2)
  • Enclosure: IP30
  • Dimensions: 228x164x55mm
  • Weight: 1.2kg

Package List

  • 3PC 100W Polycrystalline Solar Panel
  • 1PC 30A MPPT Charge Controller
  • 3 Sets Mounting Z Bracket
  • 1PC 30ft 12AWG PV Cable
  • 1PC 8FT 8AWG Tray Cable
  • 1PC Cable Entry Housing
  • 1 Pair 1Y3 Branch Connector:1 male to 3 female(M/FFF) and 1 female to 3 male(F/MMM).

View and Download

Order an Acopower 3x 100W 12V Polycrystalline RV Solar Kit today from SolarParadise.com. Free shipping + free gifts on all of our Acopower RV Solar Kits. Buy today and get a discount, free shipping, and a free gift!

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Miguel D.
Very Happy With This Kit!

I use this complete solar panel kit in my shed located on an undeveloped piece of property. It has been working well charging my telescope, phone, 18v power tool batteries, and for a lamp when it's dark.

Putting the components together was fairly straightforward. Mounted everything on scrap lumber I had lying around. Be sure to use the .pdf file download for clear, precise instructions!

K
Katie J.
Gets the job done!

Quality heavy gauge wires. Easy setup controller. All the hardware you need for installation. Great!

B
Bruce A.
Great solar system for a shed at a reasonable price

I bought this to provide power for inside 12v LED lighting in a shed without utility power. Works well. The roof mounts for the solar panel are well-designed - but make sure you use appropriate sealant to avoid leaks (not included.)

B
Brad M.
Easy and quick!

Don’t be afraid of doing it yourself, super easy!
